YAMAHA
SNOW PLOW PROF. YAMAHA HYDROSTATIC WITH MOTOR MZ-300 ELECTRIC STARTER WIDTH 71.5 CM MZ-300
REF. YS-1070T
Compatible brands:
YAMAHA
EAN Code:
8435556498124

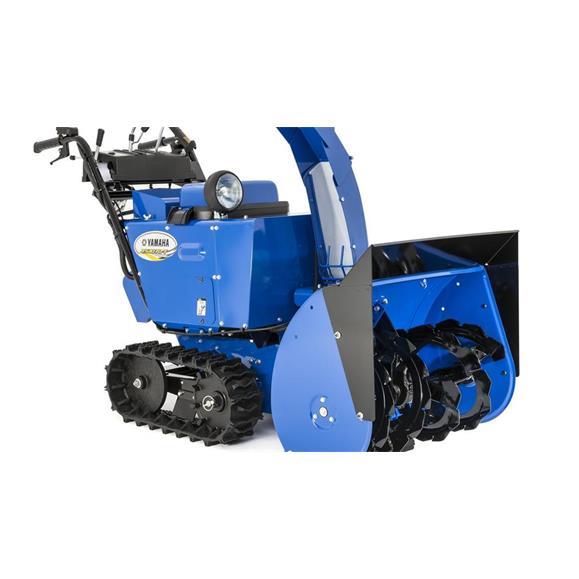

Snowblower YS-1070T with Yamaha MZ-300 10 HP engine. for professional use.
Recommended for use in residential areas and for quick cleaning of large areas in general.
It can clear up to 60 tons of snow per hour and with thicknesses of up to 51 cm.
The YS-1070T model differs from other previous models in its electro-clutch transmission which allows the advance of the machine to be independently adjusted from the reel work.

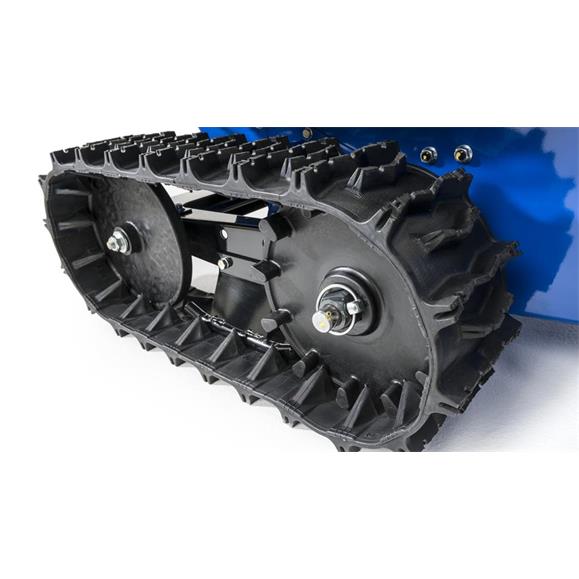

Includes rubber tracks for greater traction and electric start.
Main features:
- Two-stage system.
- Discharge tube adjustable to 220º.

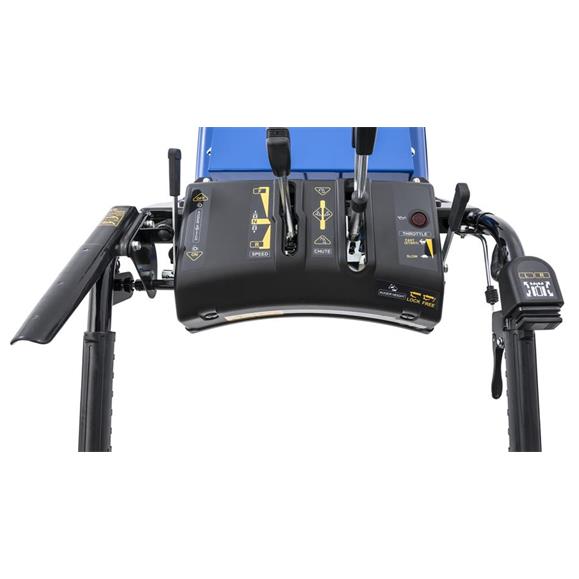

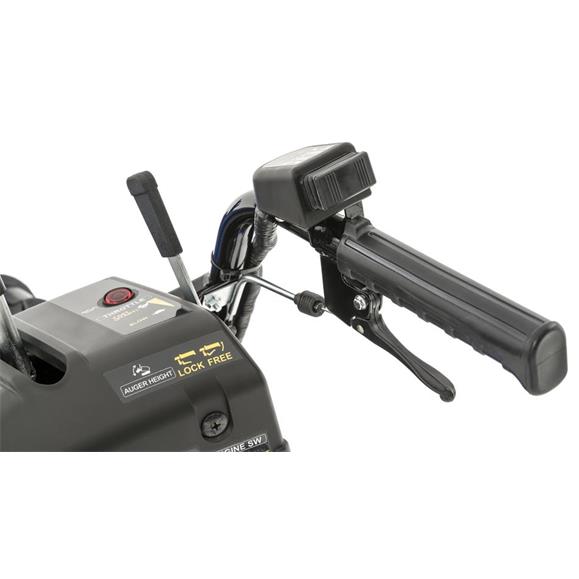

- Controls located on the handlebar.
- Rubber tracks for better traction.
| ENGINE |
| MODEL | Yamaha MZ-300 |
| POWER | 10 HP. |
| START | Manual and electric start |
| AIR FILTER | Dry filter |
| GASOLINE TANK CAPACITY | 5.8 l. |
| OIL TANK CAPACITY | 1.0 l. - SAE 10W30 |
| PRODUCTION |
| WORKING WIDTH | 715 mm. |
| CLEANING HEIGHT | 510 mm. |
| CLEANING VOLUME | 60 Ton./h |
| MAXIMUM LAUNCH LENGTH | 17 m. |
| TRANSMISSION |
| TRANSMISSION | Hidrostatic transmission (HST) |
| GEARS | 1 Forward - 1 Reverse |
| MAXIMUM FORWARD SPEED | 0 - 2.8 Km.h |
| MAXIMUM REVERSE SPEED | 0 - 1.8 Km.h |
| AMOUNT OF OIL IN TRANS. BOX | 0.92 l. - SAE 10W30 |
| RUBBER TRACKS |
| AMOUNT OF OIL TRANS. RUBBER TRUCKS BOX | 0.07 l. - SAE 10W30 |
| RUBBER TRACKS TENSION | 11 - 16 mm (a 5 kgf.) |
| WORK SYSTEM |
| LAUNCH SYSTEM | Dual Stage Reel Blower |
| REEL DIAMETER | 350 mm. |
| TRANSMISSION TO THE WINDLASS | Electroclutch |
| WORKING HEIGHT | Gas-bellows system |
| DISCHARGE PIPE |
| MATERIAL | Steel with polyethylene protection |
| TUBE TURN | Electric |
| TURNING RADIUS | 220º |
| BATERY |
| FORMAT | 40B19R |
| TYPE | 12 V. - 27 Ah. |
| FUSE | 30 A. |
| WORK LIGHT |
| BULB TYPE | 12 V. - 23 W. |
| WEIGHT, DIMENSIONS AND SOUND LEVEL |
| NET WEIGHT | 185 Kg. |
| DIMENSIONS (L x W x h) | 1568 x 745 x 1105 mm. |
| SOUND LEVEL | 102 dB |
| IMPORTANT ANNOUNCEMENT |
| The machine is supplied WITHOUT GASOLINE OR OIL in the engine |
| The machine is supplied WITHOUT OIL in the transmission box |
