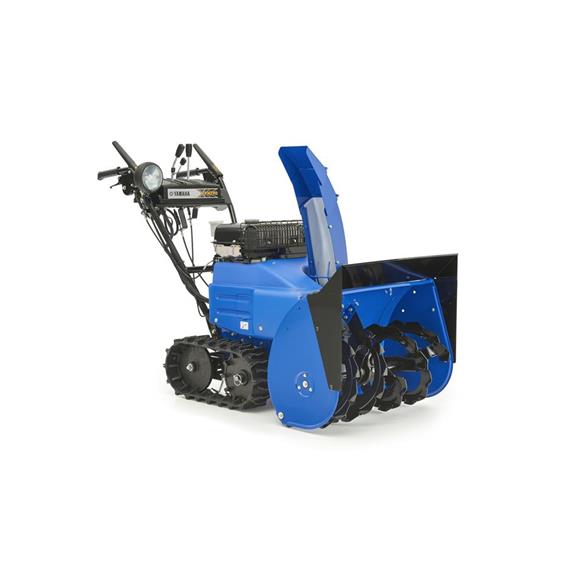

YAMAHA HYDROSTATIC SNOW PLOW WITH MOTOR MZ-300 ELECTRIC STARTING WIDTH 71.5 CM
REF. YT-1070
Compatible brands:
YAMAHA
EAN Code:
8435556498117
Snowblower YT-1070 with Yamaha MZ-300 10 HP engine for professional use.

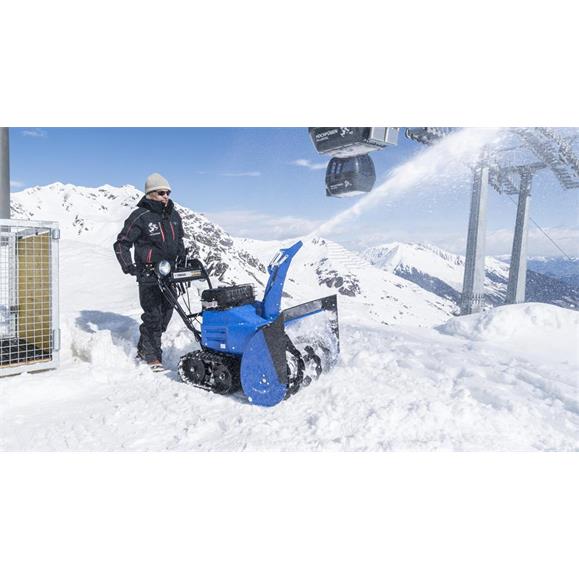

Recommended for use in residential areas and for quick cleaning of large areas in general.
It can clear up to 60 tons of snow per hour and with thicknesses of up to 51 cm.
Includes rubber tracks for greater traction and electric start.
Main features:
- Two-stage system.
- Discharge tube adjustable to 220º.

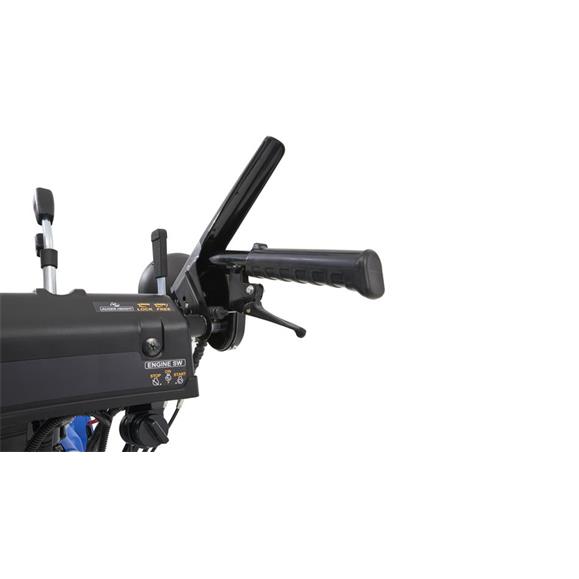

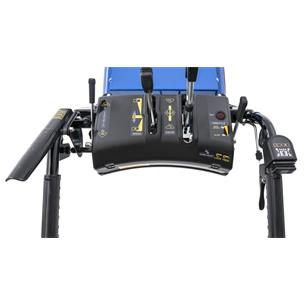

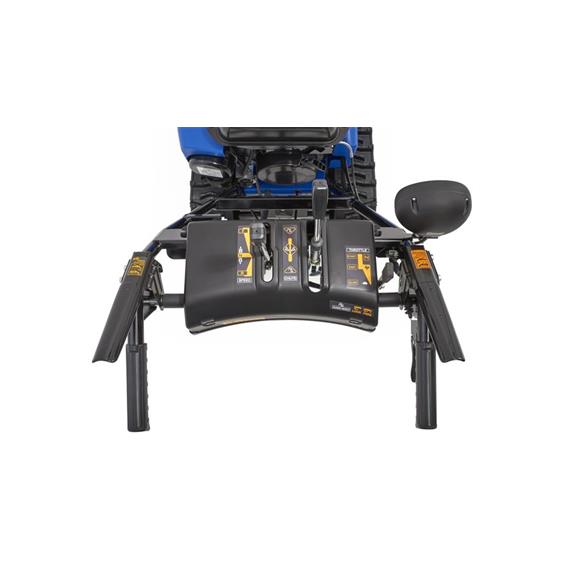

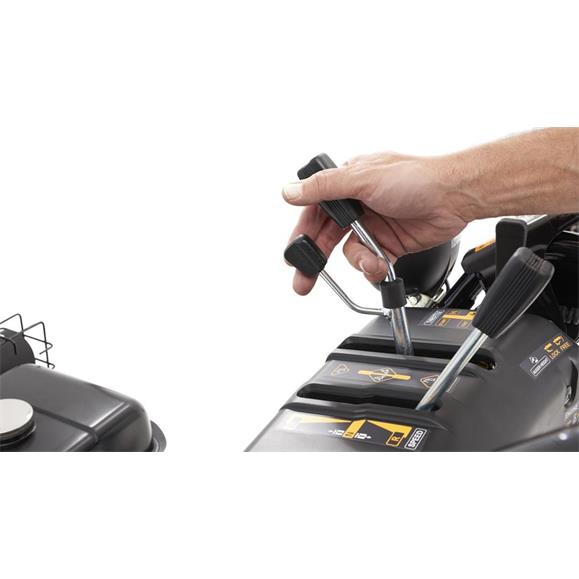

- Controls located on the handlebar.
- Rubber tracks for better traction.
- Front focus.
| ENGINE |
| MODEL | Yamaha MZ-300 |
| POWER | 10 HP. |
| START | Manual and electric start |
| AIR FILTER | Dry filter |
| GAS. TANK CAPACITY | 5.8 l. |
| OIL TANK CAPACITY | 1.0 l. - SAE 10W30 |
| PRODUCTION |
| WORKING WIDTH | 715 mm. |
| CLEANING HEIGHT | 510 mm. |
| CLEANING VOLUME | 60 Ton./h |
| MAXIMUM LAUNCH LENGTH | 17 m. |
| TRANSMISSION |
| TRANSMISSION | Hidrostatic transmission (HST) |
| GEARS | 1 Forward - 1 Reverse |
| MAXIMUM FORWARD SPEED | 0 - 3.2 Km.h |
| MAXIMUM REVERSE SPEED | 0 - 2.4 Km.h |
| AMOUNT OF OIL IN TRANS. BOX | 0.92 l. - SAE 10W30 |
| RUBBER TRUCKS |
| AMOUNT OF OIL TRANS. RUBBER TRUCKS BOX | 0.07 l. - SAE 10W30 |
| RUBBER TRACKS TENSION | 11 - 16 mm (a 5 kgf.) |
| WORK SYSTEM |
| LAUNCH SYSTEM | Blower double stage reel. |
| REEL DIAMETER | 350 mm. |
| TRANSMISSION TO THE WINDLASS | Belt drive |
| WORKING HEIGHT | Mecanic system |

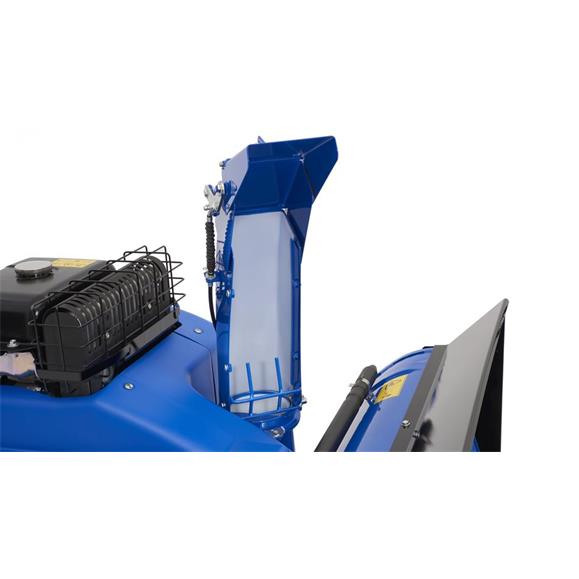

| DISCHARGE PIPE |
| MATERIAL | Steel with polyethylene protection |
| TUBE TURN | Electric |
| TURNING RADIUS | 220º |
| BATTERY |
| FORMAT | YB14L-A2 |
| TYPE | 12 V. - 14 Ah. |
| FUSE | 30 A. |
| WORK LIGHT |
| BULB TYPE | 12 V. - 23 W. |
| WEIGHT, DIMENSIONS AND SOUND LEVEL |
| NET WEIGHT | 137 Kg. |
| DIMENSIONS (L x W x h) | 1506 x 745 x 1105 mm. |
| SOUND LEVEL | 102 dB |
| AVISO IMPORTANTE |
| The machine is supplied WITHOUT GASOLINE OR OIL in the engine |
| The machine is supplied WITHOUT OIL in the transmission box |
