GTM

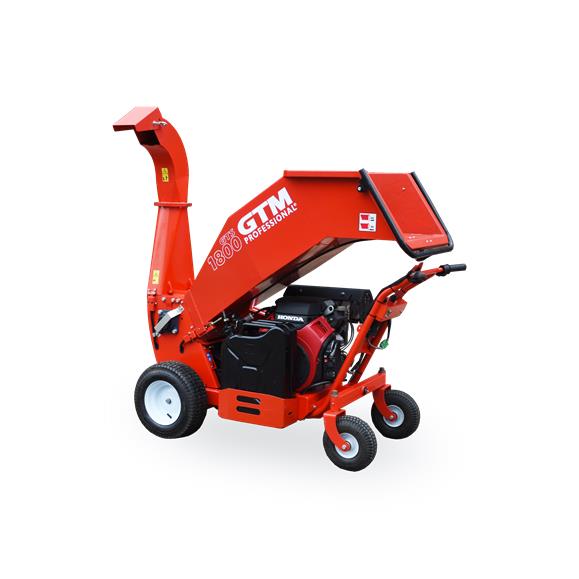

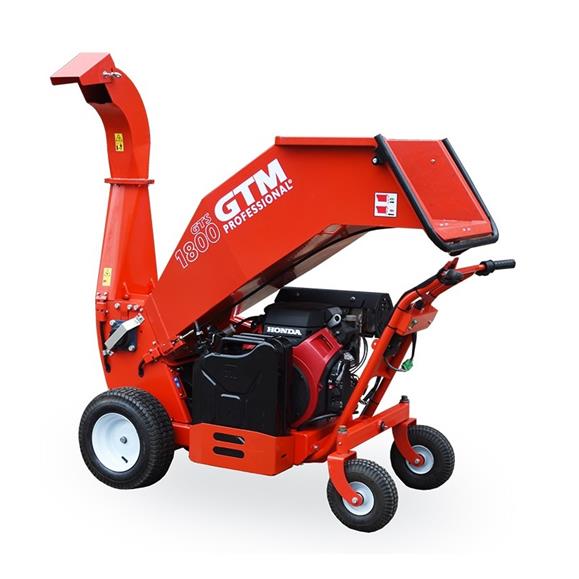

HONDA GX-630 SELF-PROPELLED BIOTCRUSHER
REF. GTS-1800WD
Compatible brands:
GTM
Type:
ORIGINAL
EAN Code:
8434898197047
The first professional machine on the market with reduced dimensions. Thanks to its 72 cm width, the machine can enter through any standard-sized door.
It is designed for the shredding of all types of pruning residues: large logs, shrubs, branches, palm leaves, etc., regardless of whether they are dry or tender.
It is easily transportable due to its electric traction system.
The working system is through a self-feeding drum, which helps the operator avoid pushing materials into the hopper manually.
Two safety devices in the hoppers create an emergency stop of the engine in case the operator opens the hopper while the engine is running.
The exit hopper has an adjustable deflector of approximately 100º.
| ENGINE |
| MODEL | Honda GX-630 (4T) |
| POWER | 668 cc - 20.8 HP |
| START TYPE | Electric |
| FUEL TANK CAPACITY | 20 Liters |
| WHEELS |
| DRIVE WHEELS | Diameter 390 mm x 130 mm (width) |
| STEERING WHEELS | Diameter 250 mm x 85 mm (width) |
| MACHINE MOVEMENT TRANSMISSION |
| TYPE | Electric. Self-Propelled |
| FORWARD SPEEDS | 2 Speeds (3 - 6 Km/h) |
| REVERSE SPEEDS | 2 Speeds (1.5 - 3 Km/h) |
| BATTERIES |
| TYPE | 12 V. / 20 Ah. (x2) |
| TYPE | 12 V. / 18 Ah. (x1) |
| AUTONOMY |
| ON FLAT GROUND | 9.5 Km. |
| ON INCLINE | 3 Km. |
| TRANSMISSION OF MOVEMENT TO THE CUTTING DRUM |
| TYPE | Double Belt |
| CUTTING SYSTEM |
| BLADES | 2 Reversible Blades + 1 Counter Blade |
| MAX CUTTING DIAMETER | 120 mm. |
| MAXIMUM LENGTH OF REMNANTS | 240 mm. |
| INLET HOPPER |
| DIMENSIONS | 50 x 35 cm |
| LOCATION (Height from the ground) | 106 cm. |
| EXIT HOPPER |
| EXIT HOPPER | Adjustable up to 270º |
| WEIGHT AND DIMENSIONS |
| WEIGHT (Empty) | 250 Kg. |
| DIMENSIONS (L x W x H) | 160 x 72 x 163 cm. |
| IMPORTANT NOTICE |
| The machine is supplied WITHOUT GASOLINE OR OIL in the engine |
