YAMAHA
YAMAHA HYDROSTATIC SNOW PLOW WITH MOTOR MX-200 ELECTRIC START
REF. YT-660E
Compatible brands:
YAMAHA
EAN Code:
8435556476436

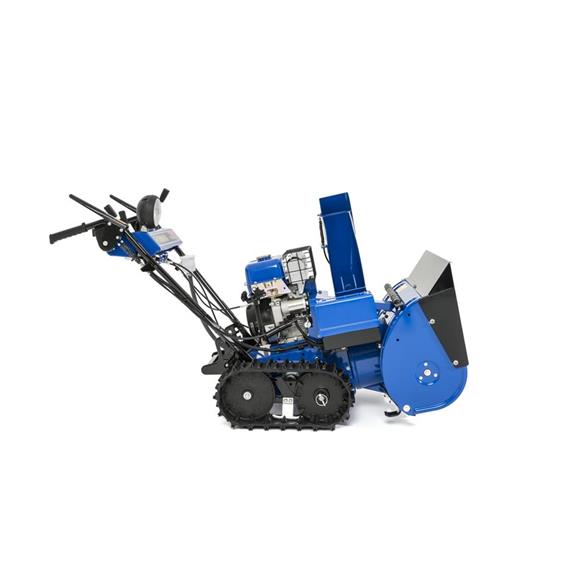

Snow blower YT-660E with Yamaha MX-200 6.5 HP engine.
Ideal model for both home and professional use.
Easy to use. Thanks to its hydrostatic transmission box it allows the working speed to be adjusted to the snow and terrain conditions.
It can clear up to 35 tons of snow per hour and work with thicknesses of up to 44 cm.
Includes rubber tracks for greater traction and electric start.
Main features:
- Two-stage system.
- Discharge tube adjustable to 220º.
- 3 levels of working height.

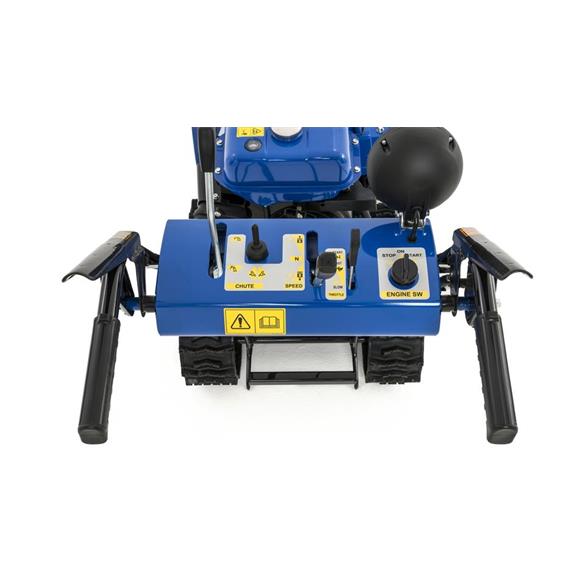

- Controls located on the handlebar.

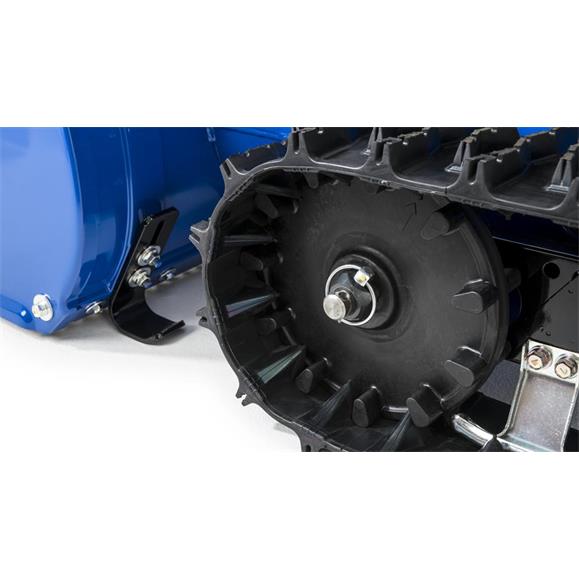

- Rubber tracks for better traction.
- Front focus.
ENGINE |
MODEL | Yamaha MX-200 |
POWER | 6.5 HP. |
START | Manual and electric start |
AIR FILTER | Dry filter |
GAS. TANK CAPACITY | 3.9 l. |
OIL TANK CAPACITY | 0.6 l. - SAE 10W30 |
PRODUCTION |
WORKING WIDTH | 615 mm. |
CLEANING HEIGHT | 440 mm. |
CLEANING VOLUME | 35 Ton./h |
MAXIMUM LAUNCH LENGTH | 14 m. |
TRANSMISSION |
TRANSMISSION | Hidrostatic transmission (HST) |
GEARS | 1 Forward - 1 Reverse |
MAXIMUM FORWARD SPEED | 0 - 3.2 Km.h |
MAXIMUM REVERSE SPEED | 0 - 2.4 Km.h |
AMOUNT OF OIL IN TRANS. BOX | 0.92 l. - SAE 10W30 |
RUBBER TRACKS |
AMOUNT OF OIL TRANS. RUBBER TRUCKS BOX | 0.07 l. - SAE 10W30 |
RUBBER TRACKS TENSION | 11 - 16 mm (a 5 kgf.) |
WORKS SYSTEM |
LAUNCH SYSTEM | Blower double stage reel |
REEL DIAMETER | 310 mm. |
TRANSMISSION TO THE WINDLASS | Belt drive |
WORKING HEIGHT | Mechanics. Three positions. |

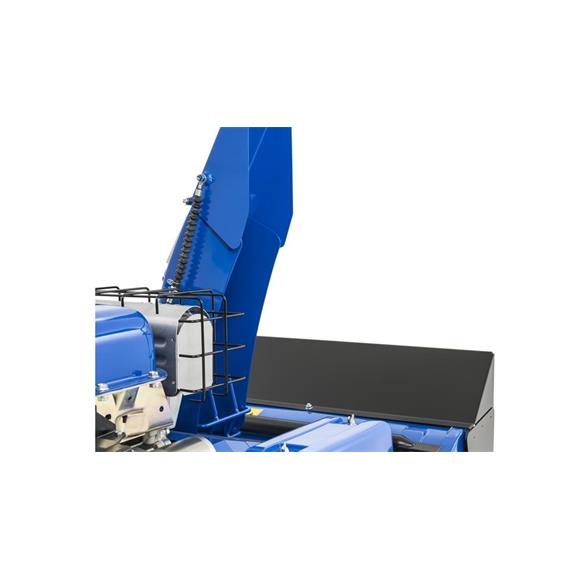

DISCHARGE PIPE |
MATERIAL | Steel |
TUBE TURN | Electric |
TURNING RADIUS | 220º |
BATTERY |
FORMAT | YB14L-A2 / YTX14-BS |
TYPE | 12 V. - 14 Ah. |
FUSE | 30 A. |
WORK LIGHT |
BOMBILLA | 12 V. - 23 W. |
PESO, DIMENSIONES y NIVEL SONORO |
NET WEIGHT | 104 Kg. |
DIMENSIONS (L x W x h) | 1466 x 640 x 1095 mm. |
SOUND LEVEL | 99 dB |
AVISO IMPORTANTE |
The machine is supplied WITHOUT GASOLINE OR OIL in the engine |
The machine is supplied WITHOUT OIL in the transmission box |
