ANNOVI

ANNOVI REVERBERI LOW PRESSURE PUMP POLYPROPYLENE AR-140, 20 BARS AND 133 L / MIN. 3/8 NON THROUGH AX

Name: ANNOVI REVERBERI LOW PRESSURE PUMP POLYPROPYLENE AR-140, 20 BARS AND 133 L / MIN. 3/8 NON THROUGH AX
Brand: ANNOVI
SKU: AR-140BPC

REF. AR-140BPC

Compatible brands:

ANNOVI

Compatible models:

AR-140 BP C BOMBA 3 MEMBRANAS 133 L/MIN. 20 BAR POLIPROPILENO

Ref. Used:

AR140BPC,

Type: ORIGINAL

EAN Code: 8434898173669

Annovi Reverberi AR-140 BPC diaphragm pump of 15 Bar. (218 PSI) and 132,9 l/min. (35,1 GPM)

PUMP

Brand

Annovi Reverberi

Model

AR-30

Transmission

PTO

Minimum revolutions required

550 rpm.

Minimum power required

5,2 HP

ASPIRATION AND OUTLET

Suction fitting diameter

D. 40 mm.

Outlet fitting diameter

D. 25 mm.

MEMBRANES

Number of membranes

3 membranes

PERFORMANCE

Maximum pressure

15 Bar. / 218 PSI

Maximum flow rate

132,9 l/min. / 35,1 gpm

Maximum temperature

60 C

MAINTENANCE

Oil change

Every 150 hours.

Type of oil

SAE-30

WEIGHT and DIMENSIONS

Dry weight

16 Kg. (approx.)

Dimensions (L x W x H)

252 x 319 x 303 mm

IMPORTANT NOTICE

The pump is supplied WITHOUT OIL in the crankcase.

It is recommended to check the levels before starting to work with it.

Brand

Despiece
Download

Manual
Download

+ info
Download

Pressure controls

ANNOVI

COMPLETE CONTROL ANNOVI REVERBERI 4 WAYS LOW PRESSURE 100 L / MIN, 20 BARS

Ref. 22-806

Annovi Reverberi pressure regulator

Last units in stock

View

VALVULA COMPLETA AR-80BP, AR-120BP, AR-140BP

Membranes, collars and rep kit. Fumigation

ANNOVI

COMPLETE VALVE AR-80BP, AR-120BP, AR-140BP

Ref. AR-2429050

Valve ass'y. Unit.

Soon

View

MANDO BAJA PRESION 20 BAR CON RETORNO COMPENSADO, 6 VIAS ,160 L/MIN, CON FILTRO

Pressure controls

ANNOVI

LOW PRESSURE CONTROL 20 BAR WITH COMPENSATED RETURN, 6 WAYS, 160 L / MIN, WITH FILTER

Ref. 22-969

Annovi Reverberi pressure regulator control with built-in filter

Available

View

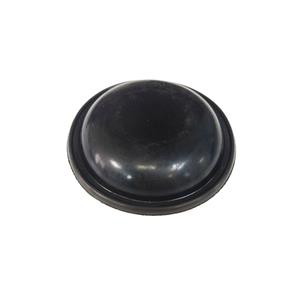

MEMBRANA ACUMULADOR AR-80BP, CRD-15, AR-120BP, AR-140BP, AR-202, AR-252, BHS-90, BHS-105, BHS-120

Membranes, collars and rep kit. Fumigation

ANNOVI

ACCUMULATOR MEMBRANE AR-80BP, CRD-15, AR-120BP, AR-140BP, AR-202, AR-252, BHS-90,...

Ref. 28-462

Air chamber diaphragm. Unit.

Available

View
