YAMAHA

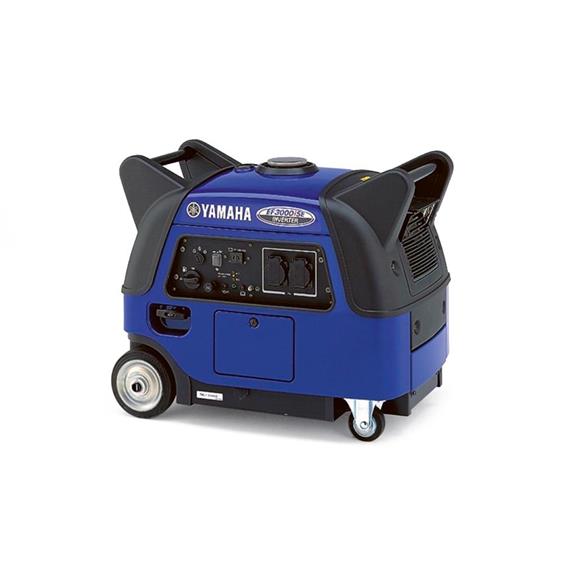

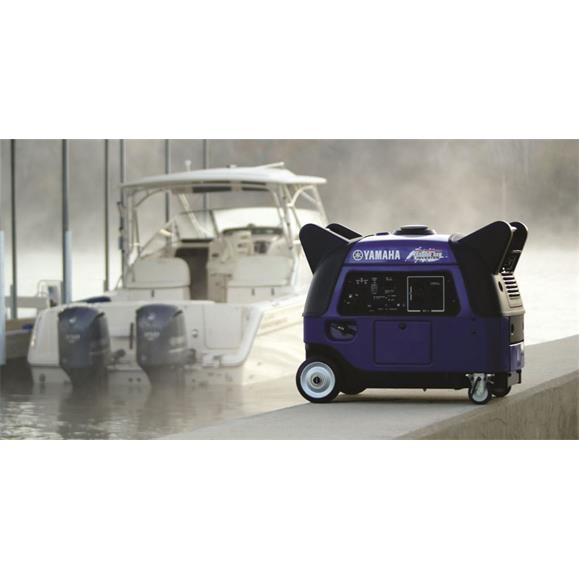

YAMAHA GENERATOR 3000 W INVERTER EF3000ISEH DEU
REF. EF-3000IS
Compatible brands:
YAMAHA
Type:
ORIGINAL
EAN Code:
8435556476429
EF-3000IS Generator with Yamaha MZ-175 171 cc engine.
Consumption control. Regulates the engine speed based on the electrical load to reduce consumption and noise level. This system allows you to reduce fuel consumption between 10 and 15%
Sine Wave Technology. Thanks to this system, a sine wave is generated that stabilizes the output signal. Advisable when connecting electronic devices sensitive to current surges.
Reduced sound level. All Inverter generators are soundproofed and none of the models exceed 70dB.
| ENGINE |
| FAMILY | MZ-175 |
| DISPLACEMENT | 171 cc |
| START | Manual / Electric |
| STARTER | Automatic |
| FUEL TANK | 13 l. (with E-F filling indicator) |
| OIL TANK CAPACITY | 0.6 l.- SAE 10W30 |
| CONTROL PANEL |
| Engine switch. |
| Fuel saving control switch. |
| Direct current (DC) outlet. |
| Alternating current (AC) outlet - 2 Schuko connectors. |
| Ground terminal. |
| RED LED overload indicator. |
| GREEN Pilot AC current indicator. |
| Direct current protector. |
| Red oil level low warning light. |
| Choke button. |
| Fuel key button. |
| TECHNICAL SPECIFICATIONS (AC OUTPUTS) |
| NOM. CURRENT | 12.2 A. |
| NOM. FREQ. | 50 Hz. |
| NOM. VOLTAGE | 230 V. |
| CONTINUOUS POWER | 2.8 Kw. |
| POWER FACTOR | PF 1.0 |
| TECHNICAL SPECIFICATIONS (DC OUTPUTS) |
| NOM. CURRENT | 12 A. |
| NOM. VOLTAGE | 12 V. |
| AUTONOMY |
| AT HALF LOAD | 17.4 hours |
| AT FULL PERFORMANCE | 8 hours. |
| BATTERY |
| TYPE | 12 V. - 10.5 Ah. |
| FORMAT | YTX12-BS |
| OFFERED POWER |
| CONSTANT | 2,800 VA |
| MAXIMUM | 3,000 VA |
| WEIGHT, DIMENSIONS, AND SOUND LEVEL |
| WEIGHT (Empty) | 67 Kg. |
| DIMENSIONS (L x W x H) | 680 x 445 x 555 mm. |
| SOUND LEVEL (at 7 m.) | 51 - 57 dB. (at full performance) |
| ACOUSTIC POWER | 88 dB |
| IMPORTANT NOTICE |
| The machine is supplied WITHOUT GASOLINE OR ENGINE OIL |
