MOTOAZADA YAMAHA 2+1 VELOC.CON MOTOR MX-1752AE

YAMAHA

MOTOR TILLER YAMAHA 2+1 SPEED WITH ENGINE MX-1752AE

REF. MXT-1200
Compatible brands:
YAMAHA
Ref. Used:
, 02-03-009-03(016/017/18/23)02
EAN Code: 8434898203427


IMPORTANT: Check item availability

Versatile machine equipped with a Yamaha MX-175 5 HP engine with oil bath filter and a gearbox made of steel with three speeds (2 front + 1 rear) and clutch transmission.

Indicated for demanding users or large areas of land.

Main features:

  • Front transport wheel included.
  • Handlebar adjustable both in height and on the sides.
  • Dampening system at the base of the handlebar.
  • Oil bath filter installed on the engine.
  • Professional gearbox with seal covers.

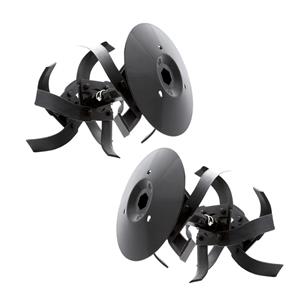

  • 6 cutters with a total of 24 blades and 2 protective plates.
  • Removable protective fins.

ENGINE
MODEL MX-175
START Manual
AIR FILTER Oil bath
FUEL TANK CAPACITY 3.9 l.
OIL TANK CAPACITY 0.6 l. - SAE 10W30

TRANSMISSION
TRANSMISSION CASE Steel
SPEEDS 2 Forward + 1 Reverse
TRANSMISSION SYSTEM Clutch (dry clutch)
BLADE SHAFT Hex. 27 mm.

CULTIVATION SYSTEM FEATURES
BLADES 24 blades + 2 plates
WORKING WIDTH 500 - 900 mm.
WORKING DEPTH 150 - 300 mm.

WEIGHT AND DIMENSIONS
WEIGHT (empty) 85 Kg.

IMPORTANT NOTICE
Basic assembly by the customer is required
The machine is supplied WITHOUT GASOLINE OR OIL in the engine
The machine is supplied WITHOUT OIL in the transmission case
