UNIVERSAL
HEDGE TRIMMER MOTOR 22.5 CC 7500 RPM 1.3 HP CLUTCH 54 MM DRIVE 5 SCREWS
REF. NK-620-MT
Compatible brands:
UNIVERSAL, KAWASAKI, MITSUBISHI
Compatible models:
22,5 CC, 7500 rpm, 1,3 HP, Anclaje 3 tornillos, Embrague 54 MM, Carburador WALBRO. Compatible KAWASAKI TH-23V, MITSUBISHI TL-201
Type:
ORIGINAL
EAN Code:
8434898002761

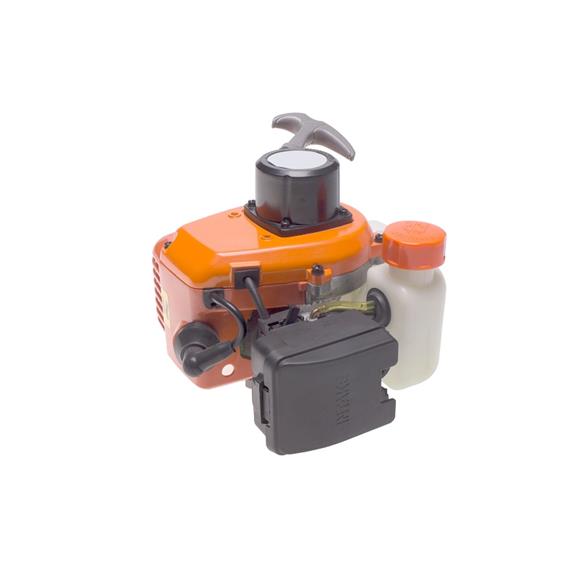

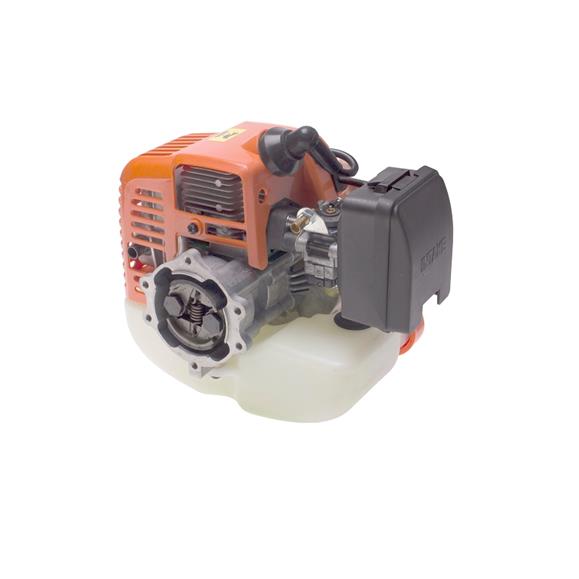

Nouki NK-620-MT 1.3 HP 2-stroke engine for hedge trimmer with 54 mm clutch. air-cooled and with vertical crankshaft.
Fixing to the transmission with 6 screws
| ENGINE |
| MODEL | Nouki NK-620-MT |
| MAX. NET TORQUE | 0.65 kW (1.1 HP) / 7500 rpm. |
| DISPLACEMENT | 22.5 cm3 |
| BORE x STROKE | D.32 x 28 mm. |
| STARTER | Recoil |
| FUEL TANK CAPACITY | 0.75 l. - (50:1) |
| WEIGHT and DIMENSIONS |
| DRY WEIGHT | 2.7 Kg. |
| DIMENSIONS (L X W X h) | 270 x 240 x 29.5 mm. |
| OTHER FEATURES |
| Fixing to the transmission with 6 screws. |
| Original Walbro carburetor. |
| IMPORTANT |
| The engine is supplied WITHOUT FUEL IN THE TANK. |
