M8048400 DESBROZADORA MARTILLOS 870 MM, MOTOR MX-400, DESPLAZAMIENTO LATERAL
REF. YDM-880DL
Compatible brands:
YAMAHA
Type:
ORIGINAL
EAN Code:
8434898204141

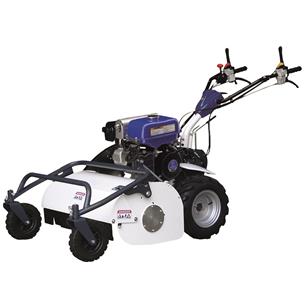

Hammer brush cutter YDM-880DL belonging to the high range of hammer brush cutters. A machine equipped with a powerful Yamaha MX-400 14 HP engine.
It is characterized by its laterally displaced cutting deck, leaving the operator located on the left side of the machine. This feature has been developed to get closer to the work area and facilitate work both under the branches of fruit crops and in areas that are difficult to access.
It has a gearbox with four speeds forward and two speeds reverse as well as a rotation system by unlocking the transmission box
It comes with wide agricultural profile drive wheels to never lose traction when working on wet grass or slopes.
Highly recommended for working on uneven terrain.
| ENGINE |
| MODEL | Yamaha MX-400 |
| POWER | 14 HP |
| START | Manual |
| AIR FILTER | Dry filter (filter + prefilter) |
| FUEL TANK CAPACITY | 6.1 l. |
| OIL TANK CAPACITY | 1.1 l. - SAE 10W30 |
| CUTTING SYSTEM |
| HAMMERS | 48 Y-shaped |
| WORKING WIDTH | 870 mm. |
| OFFSET WORKING WIDTH | 400 mm. |
| WORKING HEIGHT | 20 - 80 mm. |
| TRANSMISSION |
| SPEEDS | 4 Forward - 2 Reverse |
| MAX SPEED FORWARD | 4.6 Km/h. |
| MAX SPEED REVERSE | 2.7 Km./h |
| TRANSMISSION OIL |
| OIL | SAE-80 / SAE-90 |
| QUANTITY | 1.25 |
| WHEELS |
| DIMENSIONS | 17 x 8.80 - 8 (agricultural profile) |
| OTHER FEATURES |
| Side working position. |
| Adjustable and height-adjustable handlebar. |
| Turn by locking. |
| Independent cutting traction. |
| WEIGHT and DIMENSIONS |
| WEIGHT (empty) | 210 Kg. |
| SOUND LEVEL | 100 dB. |
| IMPORTANT NOTICE |
| The machine requires basic assembly. |
| It is supplied WITHOUT GASOLINE OR OIL IN THE ENGINE |
| The machine is supplied WITHOUT OIL in the transmission box. |
