VG SPRAYER
SPRAYING GROUP LS-547 THREE PHASE 7.5 CV 1,500 RPM
REF. LS-547-T
Compatible brands:
VG,SPRAYER
EAN Code:
8434898145895

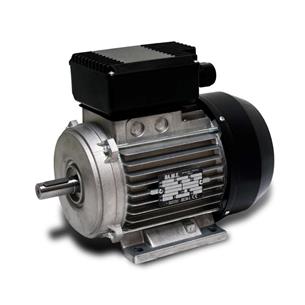

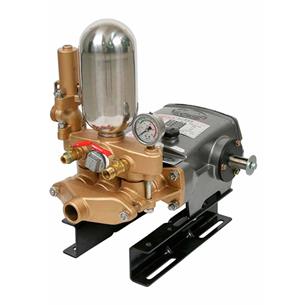

Three-phase electric spray group LS-547-T is composed of a LS-547 spray pump with 50 atm. and 73 l/min and a 7.5 HP three-phase electric motor.
The motor transfers motion to the pump through pulleys.
The group includes a suction hose with a filter, a return hose, and a glycerin pressure gauge.
IMPORTANT: We remind you of the importance of cleaning the liquid circulation circuit of the pump after each use with clean water.
| ENGINE |
| MODEL | Three-phase Electric |
| POWER | 7.5 HP |
| PUMP |
| MODEL | LS-547 |
| COLLARS | 9 V-Packings - (3 per piston) |
| MAXIMUM PRESSURE | 50 atm. |
| MAXIMUM FLOW | 73 l/min. |
| ENGINE CONNECTION |
| TYPE | Pulley Transmission |
| IMPORTANT NOTICE |
| The pump is supplied WITHOUT OIL. |
| It is recommended to check the levels before starting to work with it. |
