MARUYAMA
CLUTCH HOOD AE420 / 500 - BC420 / 500 - MBC480 DIAM INT 78 MM - ALT. 27MM CONEX M8
REF. 211203
Compatible brands:
MARUYAMA
Compatible models:
AE-420, AE-500
BC-420, BC-500
MBC-480
DIAM. Int. 78 MM
Altura 27 MM
Conexión. M6
Original Ref.:
211203, 211682
Ref. Used:
211203, 211682,
Type:
ORIGINAL
EAN Code:
8435543001191

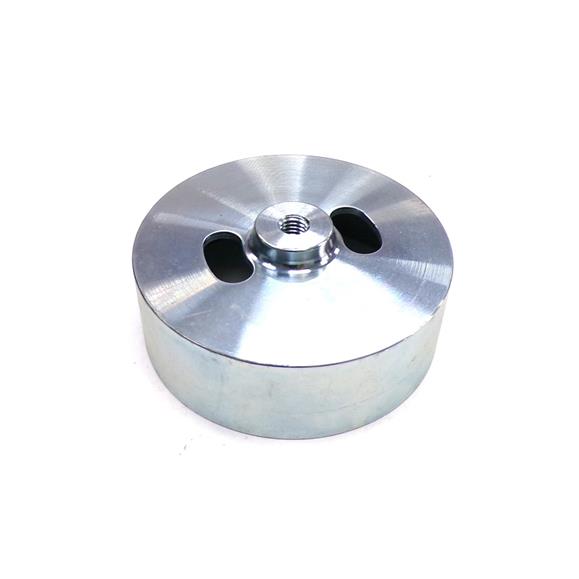

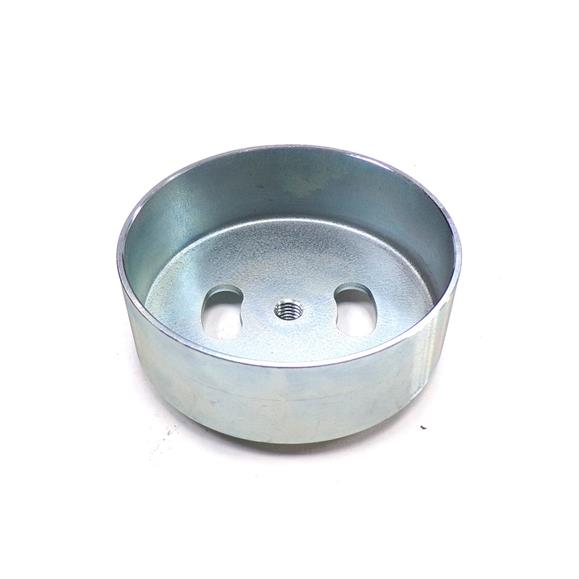

Clutch drum for brushcutter.
| FEATURES |
| Inside diameter of the clutch drum | D. 78 mm. (approx.) |
| Clutch drum height | 27 mm. (approx.) |
| Compatibility with shaft type | M8 x 1,25 mm. |
| Neck height | 8,6 mm. (approx.) |
| FITS TO |
| MARUYAMA |
| Brushcutter | BC Series | BC-420 |
| BC-500 |
| MBC Series | MBC-480 |
| IMPORTANT NOTICE |
| NO WE ENSURE the compatibility of this spare part with models that are not mentioned in the description. |
